Overall Evaluation Board for Raspberry Pi Pico,with 3.5inch 65K Colorful LCD Display 480×320 Pixel IPS Screen, Onboard Rich Components for Easily Evaluating RP2040 and Fast Get Started with Pico

Sold by
Shopaii
@ chrispengcn

£44.19

Added to wishlistRemoved from wishlist 0
Add to compare
Category:

Price: $44.19
(as of Apr 03, 2024 15:58:16 UTC – Details)

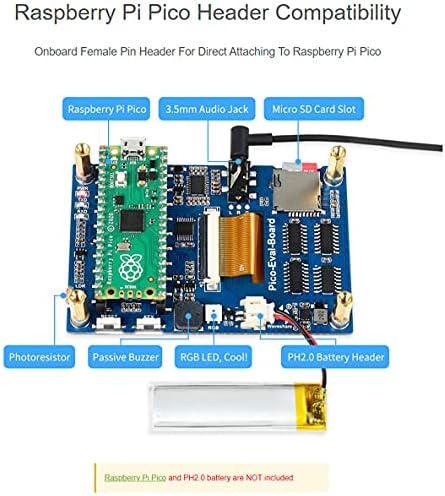

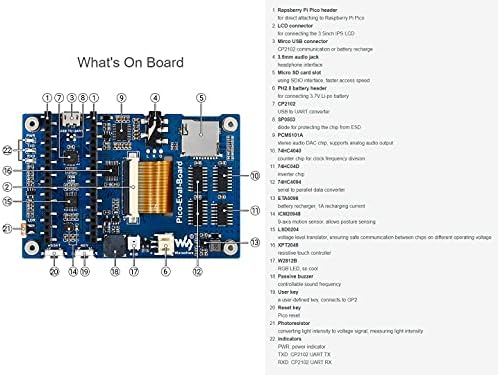

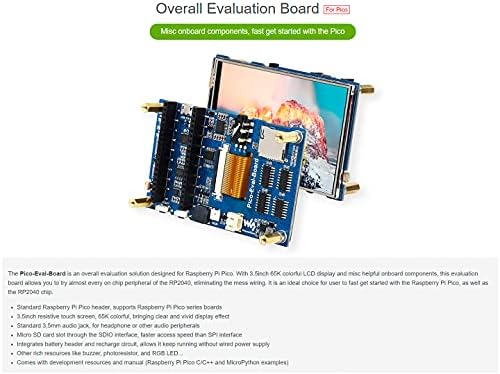

Overview/br> The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico. With 3.5inch 65K colorful LCD display and misc helpful onboard components, this evaluation board allows you to try almost every on chip peripheral of the RP2040, eliminating the mess wiring. It is an ideal choice for user to fast get started with the Raspberry Pi Pico, as well as the RP2040 chip.

Features
1)Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

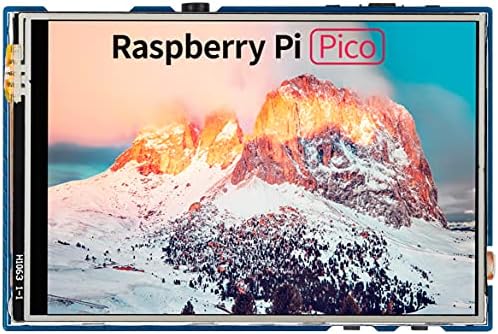

2) 3.5inch resistive touch screen, 65K colorful, bringing clear and vivid display effect
3) Standard 3.5mm audio jack, for headphone or other audio peripherals
4) Micro SD card slot through the SDIO interface, faster access speed than SPI interface
5) Integrates battery header and recharge circuit, allows it keep running without wired power supply
6) Other rich resources like buzzer, photoresistor, and RGB LED…
7) Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython
examples)

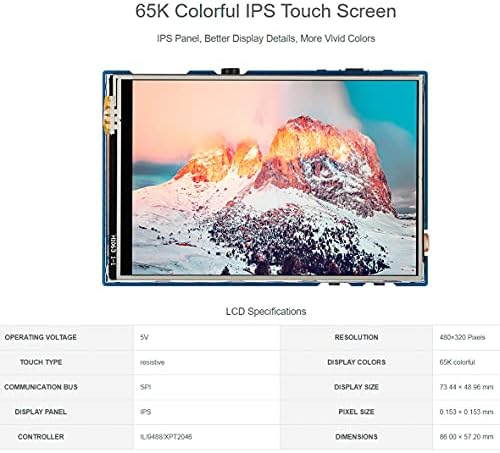

3.5inch LCD Specifications
Operating voltage: 5V
Resolution: 480×320 Pixels
Touch type: resistive
Display colors: 65K colorful
Communication bus: SPI
Display size : 73.44 x 48.96 mm
Display panel: IPS
Pixel size: 0.153 x 0.153 mm
Controller : ILI9488/XPT2046

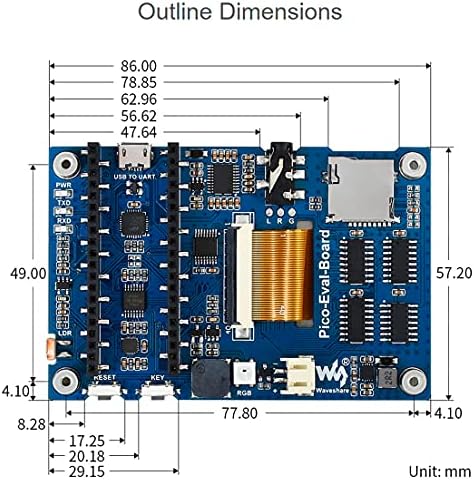

Dimensions : 86.00 x 57.20 mm

Package Content
Pico-Eval-Board x1
Standoff pack x1

The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico, Standard Raspberry Pi Pico header, supports Pico series boards
With 3.5inch 65K colorful LCD.IPS Display,resistive touch screen, 480×320 Pixels, bringing clear and vivid display effect
Standard 3.5mm audio jack, for headphone or other audio peripherals. Micro SD card slot through the SDIO interface, faster access speed than SPI interface.
Integrates battery header and recharge circuit, allows it keep running without wired power supply
Other rich resources like buzzer, photoresistor, and RGB LED…
