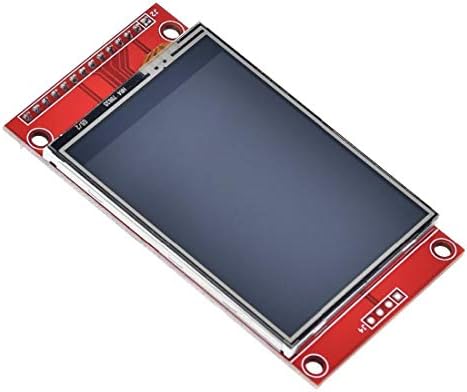

HiLetgo 2.4″ SPI TFT LCD Display 2.4 Inch ILI9341 Touch Panel LCD ILI9341 240×320 5V 3.3V

Description:

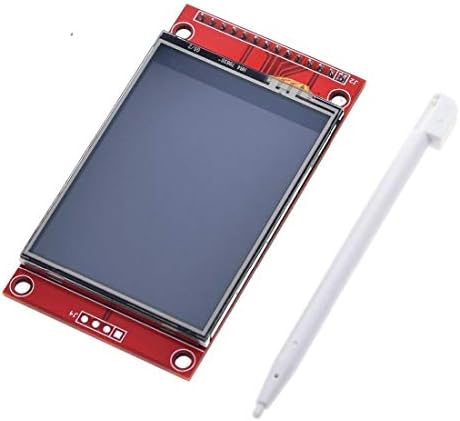

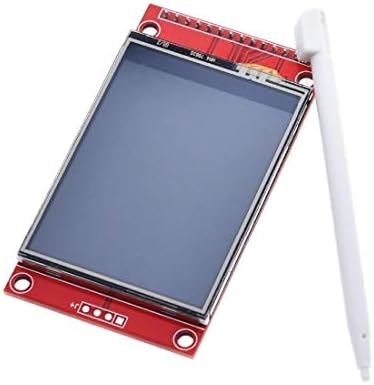

Type: touch panel
Size:2.4″ SPI Serial

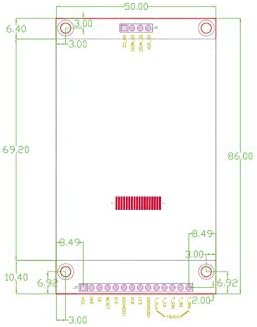

Display area:36.72(W)X48.96(H)mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o`clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU

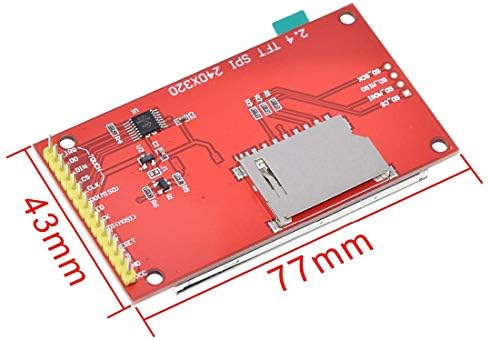

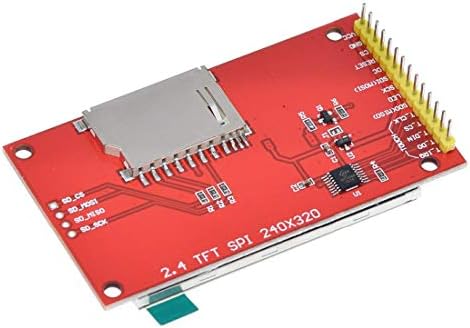

With PCB plate (including power supply IC, SD), compatible with 5110 interface

Package includes:
1 * 2.4″ SPI TFT LCD Display 2.4 Inch Touch Panel LCD ILI9341 240×320 5V/3.3V

Type: without touch panel
Size:2.4″ SPI Serial
Display area:36.72(W)X48.96(H)mm
Driver element: a-Si TFT active matrix
Driver IC: ILI9341
