Blue I2C IIC Communication Display 0.96 “LCD OLED LCD Module SSD1306 Resolution 128×64
£6.99
Price: $6.99
(as of Apr 03, 2024 19:54:16 UTC – Details)
💎【Features】
Color: blue
Size: 0.96inch”
Driver IC: SSD1306
Viewing angle: > 160°
Voltage: 3.3V-5V DC
High resolution: 128 x 64
OLED self-luminous, no backlight
Module Size: 27mmx 27mm x 4mm
Working Temperature: -30°C~70°C
Screen material: glass, need good protection

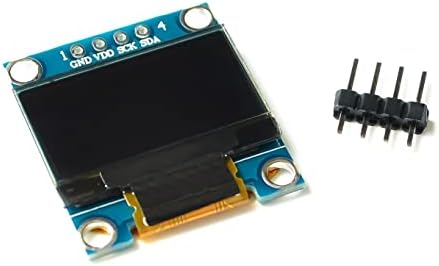

💎【I2C Interface】
GND: Ground
VCC: 3.3V~5V
SCL: I2C Serial Clock (R3: A5; MEGA: 21)
SDA: I2C Serial Data (R3: A4; MEGA: 20)
💎SSD1306 0.96 “OLED module that displays graphics and text information directly on microcontroller projects.
⚡ Supported voltage :3.3V-5V DC, power consumption in normal operation 0.04W, full screen bright 0.08W resolution :128*64
🥇 It has ultra-high contrast, bright and clear dots, and even tiny fonts that are quite readable

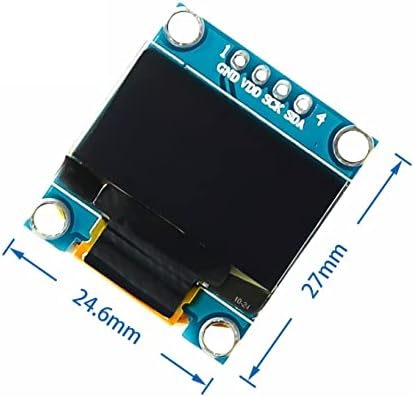

🥈 Size :24.6mm×27mm (0.96in × 1.06in)
🥉 It supports a variety of chips :Arduino UNO and Mega, Raspberry PI, 51 MCU, STIM 32 and more
