4096 RGB Full-Color LED Matrix Panel Display 64×64 Pixels for Raspberry Pi 3mm Pitch with 2 HUB75 Interface

Sold by
Shopaii
@ chrispengcn

£37.55

Added to wishlistRemoved from wishlist 0
Add to compare
Category:

Price: $37.55
(as of Apr 03, 2024 13:56:22 UTC – Details)



Overview
This product RGB Matrix P3.0-64×64 is on-board 4096 full-color display LEDs with 3mm pitch,which is designed for Raspberry Pi developing board. The product is provided with open development resources, suitable for the electronic makers and the related learners to learn or DIY.

Specifications

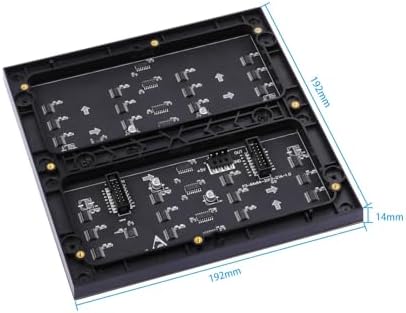

Dimensions:192mm(L)x192mm(W)x15mm(H)
Pixels: 64×64
Pitch: 3.0mm
Pixel Form: 1R1G1B
Viewing AngleI: ≥160°
Header: HUB75
Control Type: Synchronization
Driving Type: 1/32 scan
Power Supply: 5V/4A
Power Port: VH4 header input

Note:
1.If it is used for multi-screen cascading, please make sure that the power of each screen is 5V/4A.
2.Please feel free to contact us via Amazon message if you have any problem.

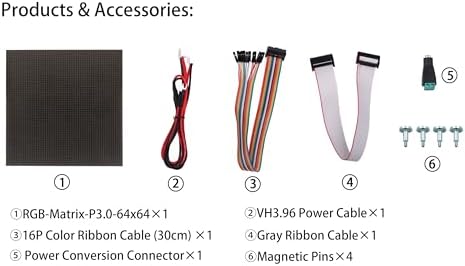

Package contents:

1. RGB LED Matrix Panel P3.0-64×64 x1
2. Signal cable (flat cable) x 1
3. Power cable x1
4. 16P Dupont cable x1
5. Power supply terminal adapter x1
6. Screws x4

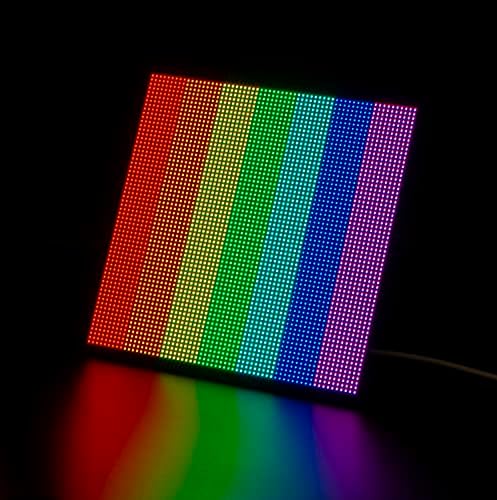

1.On-board 64×64, 4096 RGB display LEDs, with full-color display and adjustable brightness

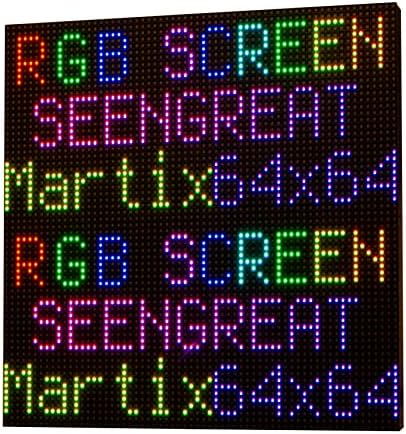

2.3mm pitch, displaying text, animation and colorful image

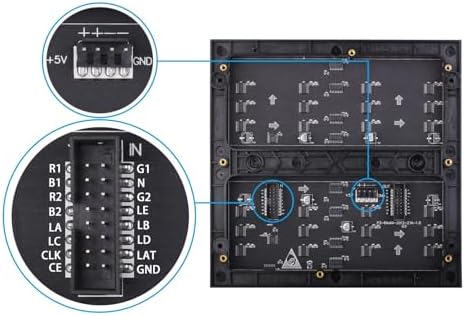

3.Onboard two HUB75 interfaces, one input for connecting to the controller, one output for being cascaded multi-screen
4.192mmx192mm, moderate size, suitable for DIY research and study
5. Providing open development resources and tutorials of the use for Raspberry Pi and Ardui.
